Orientation

Orientation represents the rotation of a marker around its center. The axis and rotations follow the aircraft principal axis as shown in the diagram above. These can be accessed as follows:

yaw

The angle of rotation in radians clockwise about the vertical axis, from the perspective of the marker.

pitch

The angle of rotation in radians upwards about the transverse axis, from the perspective of the marker.

roll

The angle of rotation in radians clockwise about the longitudinal axis, from the perspective of the marker.

from sbot import *

robot = Robot()

markers = robot.camera.see()

for marker in markers:
   print(marker.orientation.yaw)
   print(marker.orientation.pitch)
   print(marker.orientation.roll)

Examples

The following images visually explains what positive and negative rotations represent. The red arrow is not normally present on the marker but is used in these examples to indicate which way is up.

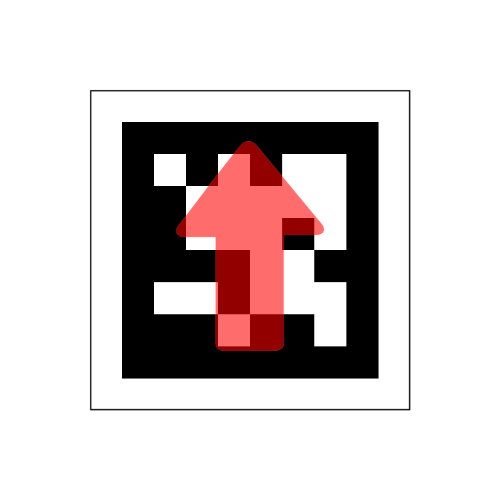

0 in all axes:

	π/4	-π/4

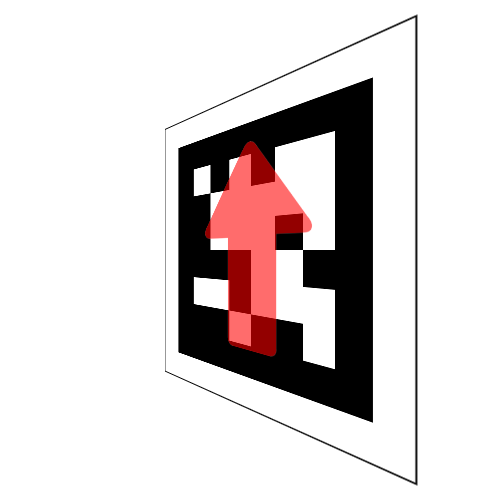

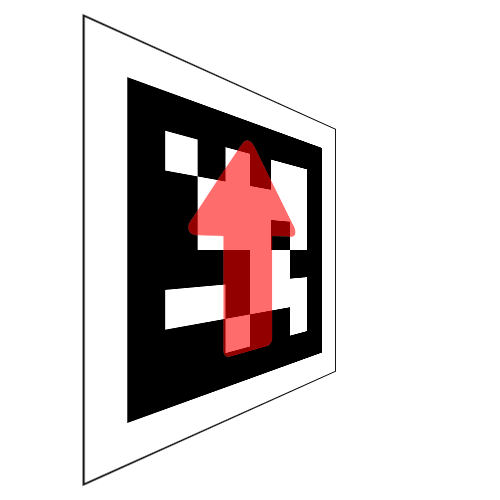

yaw

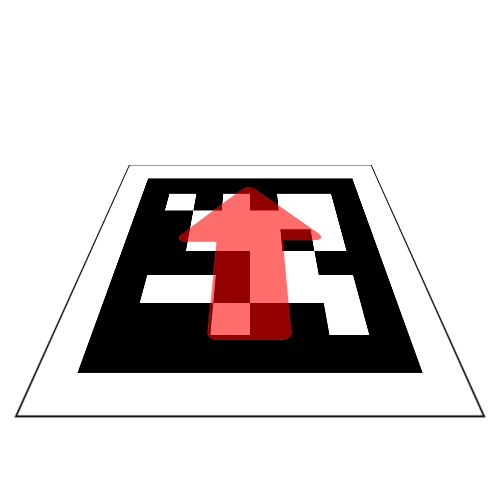

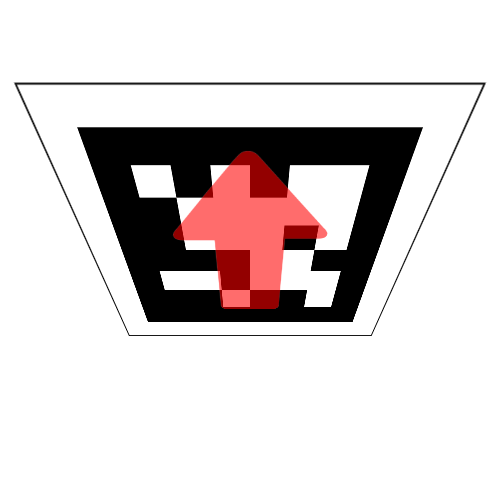

pitch

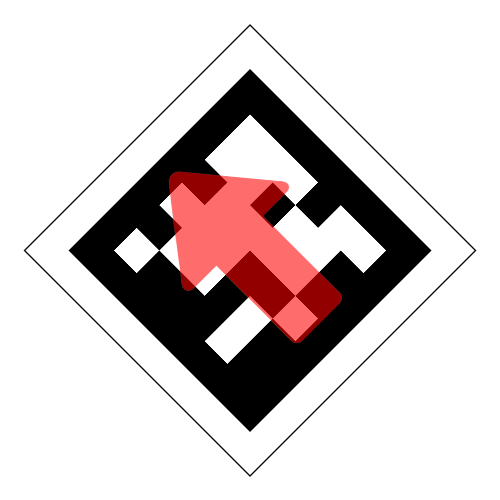

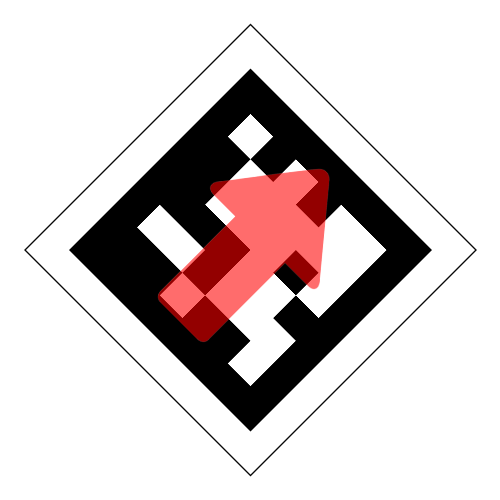

roll
